High Lumen UFO LED High Bay Light SMD3030 Type Aluminum / PC Material

Product Categories

JINLIN SEMICONDUCTOR LIGHTING LIMTED

Contact Now

High Lumen UFO LED High Bay Light SMD3030 Type Aluminum / PC Material

Name: High Lumen UFO LED High Bay Light SMD3030 Type Aluminum PC Material
Brand: JINLIN
Price: 1 USD

China High Lumen UFO LED High Bay Light SMD3030 Type Aluminum / PC Material wholesale

Brand Name : JINLIN

Model Number : JL-UFO-150W

Certification : CE,RoHS

Place of Origin : Shenzhen China

MOQ : 1pcs

Payment Terms : T/T

Supply Ability : 10,000pcs/month

Delivery Time : sample order 3-5days

Packaging Details : 1pcs/carton

Wattage : 150W

Light source : LED

Input voltage : AC85-265V 50/60Hz

light Efficiency : 140lm/w

Total Lumen : 21000lm

Lens : 60°/90°/120°

Material : Aluminum+PC

CCT : 3000K/4000K 5000K / 6000K

LED Type : SMD3030

CRI : >80

Demension : Φ340*180mm

PF : >0.9

IP Rating : IP65

working temperature : －20℃～＋50℃

Warranty : 3years

Usage : WAREHOUSE, Indoor/Outdoor

another name : UFO LED Highbay light, UFO Highbay, LED Highbay

Contact Now

JL-UFO-150W high lumen 140lm/w UFO Highbay SMD3030 Meanwell driver LED UFO High bay

Product details

Model No.	JL-UFO-100W	JL-UFO-150W	JL-UFO-200W	JL-UFO-240W
Input voltage	AC85-265V 50/60Hz	AC85-265V 50/60Hz	AC85-265V 50/60Hz	AC85-265V 50/60Hz
Power	100W	150W	200W	240W
LED Type	SMD3030	SMD3030	SMD3030	SMD3030
IP Rating	IP65	IP65	IP65	IP65
Efficiency	140lm/w	140lm/w	140lm/w	140lm/w
Total Lumen	14000lm±10%	21000lm±10%	28000lm±10%	36000lm±10%
Color temperature	2500~6500K	2500~6500K	2500~6500K	2500~6500K
CRI	>70	>70	>70	>70
PF	>0.95	>0.95	>0.95	>0.95
Size	Φ290*171mm	Φ340*180mm	Φ400*193mm	Φ400*204mm
Beam angle	60°/90°/120°	60°/90°/120°	60°/90°/120°	60°/90°/120°
Working temperature	－20℃～＋50℃	－20℃～＋50℃	－20℃～＋50℃	－20℃～＋50℃
Material	Aluminum+PC	Aluminum+PC	Aluminum+PC	Aluminum+PC
Driver brand	Meanwell	Meanwell	Meanwell	Meanwell
Net weight	2.4kg	3.2kg	3.9kg	4.8kg
Packing	1pcs/carton	1pcs/carton	1pcs/carton	1pcs/carton
Install	hook or bracket holders	hook or bracket holders	hook or bracket holders	hook or bracket holders
Warranty	3 years	3 years	3 years	3 years

High Lumen UFO LED High Bay Light SMD3030 Type Aluminum / PC Material

Product features:

1. High brightnes LED chip: 3030 SMD.

2. High Lumen efficieny >130lm/W

3. Different beam angle 60°/90°/120° available

4. Long lifespan 50,000hrs

5, Three installation method : bracket or hook mounting optional

6, 5 years warranty

Product Size

Installation

Packaging

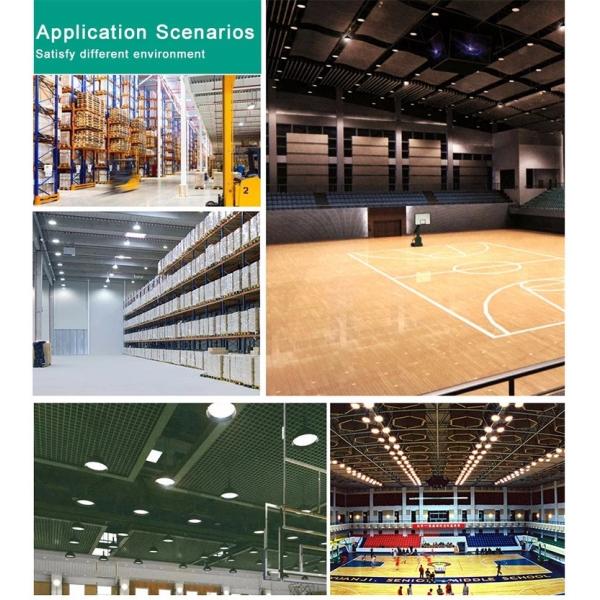

Application

High Lumen UFO LED High Bay Light SMD3030 Type Aluminum / PC Material

Company Information

About us:

Shenzhen Jinlin Semiconductor Lighting Limited founded in 2009, located in Shenzhen where is the base of LED lighting industry in China. a high-tech enterprise with Research, , Manufacture, Marketing and Service. We have an R&D department with excellent engineers who research and develop the LED light and LED driver power. We are one of the pioneer of indoor -lighting exploration , focus on improving LED indoor lighting technology. Leading the development trend of LED light . We are professional ,because of focusing the target, Our task is that create low-carbon and energy-saving LED lighting products, we'll be keep exploring, improving and perfecting, Specializing in LED Tube light, Bulb light, Corn light, Flood Light, UFO Highbay etc. Products are RoHS CE PSE FCC TUV UL approved. LED down light, LED bulb and LED tube have got some patents of appearance and new technology from nation.

High Lumen UFO LED High Bay Light SMD3030 Type Aluminum / PC Material

Our services

Your inquiry will be promptly replied in 12 hours
With high quality, all products are 48 hrs aging test
OEM&ODM available.any your customized lightings we can help you to design and put into product
3 years warranty
Any defective products within warranty will get maintenance or replacement unconditionally
